Product introduction
Kangaite IBC cask - safe and efficient way of carrying, for you to bring better economic benefits and provide greater security.
The IBC bucket is also called an Intermediate Bulk Container for Intermediate Bulk containers, and some people call it a plastic Container, a ton of containers, and a thousand liters of barrels.
Currently, kangai has three colors to choose from: white, blue, black and silver.
Technical features
● Low first-class technology: using high molecular weight high density polyethylene (HWHDPE) a blow moulding, using the axial and radial wall thickness control to make container in symmetric parts of the tank wall thickness is uniform, and the material adding anti-uv agents to prevent aging container bladder.
● The side of the container has a level line to facilitate filling.
● The product looks beautiful, the capacity is big, the material environmental protection. High density polyethylene material, high strength, good safety, corrosion resistant, components and recyclable.

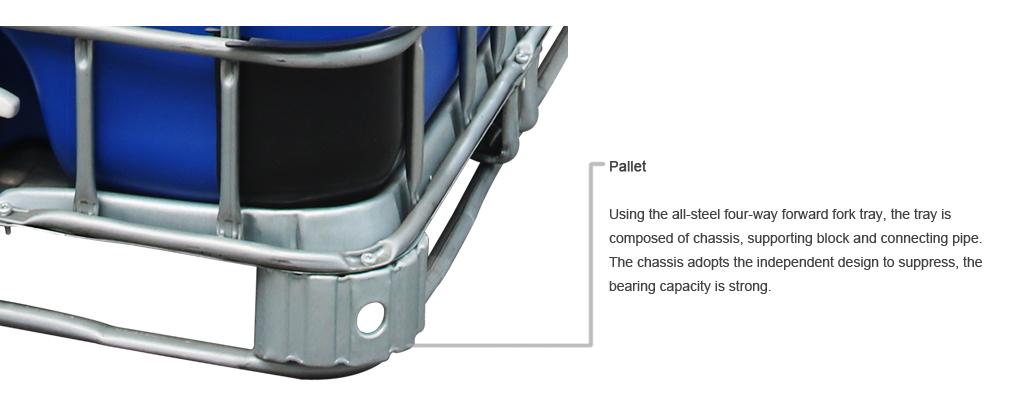

● Save space, convenient storage and transportation (especially suitable for container transportation), can be stacked stacked, can be used for loading and unloading by forklift truck or manual hydraulic truck.

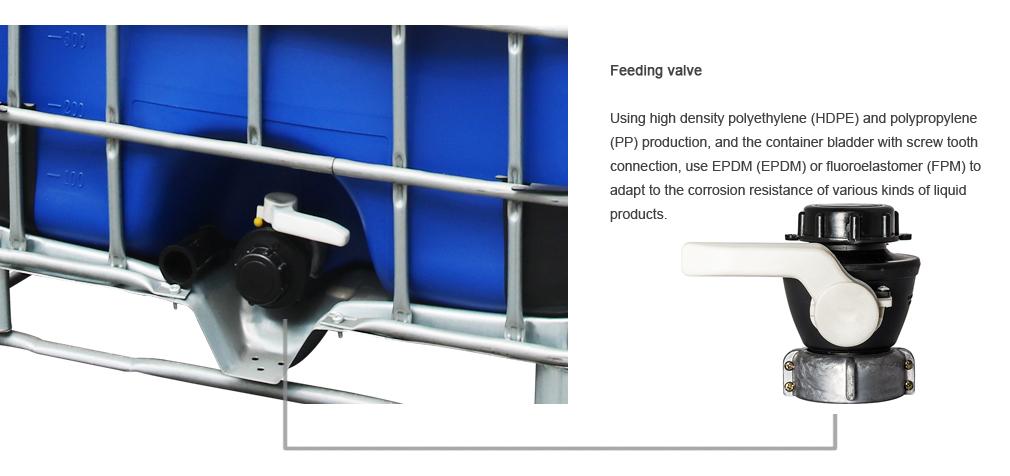

● Safe, convenient, reliable, have high sealing bottom valve, convenient loading and unloading liquid, barrel with effective pressure reducing valve, the barrel body scale, make the drainage more thoroughly, can clearly see the liquid level.
Application field
● Low is widely used in petrochemical, dyes, intermediates, pesticides, brewing, cosmetic, beverage liquid such as manufacturing industry, for Ⅱ class and below with ordinary liquid products storage and transportation of dangerous goods packaging used.
|
Model number
|
Nominal capacity (L)
|
Weight (kg)
|
Nominal size (mm)
|
Maximum density of clothes
|
The tray form
|
|
CD1000D
|
1000（275gallons）
|
58
|
1200*1000*1145
|
1.9
|
All steel tray
|
|
IBC type code:UN31HA1
|
Level of dangerous goods packaging: Ⅱ level
|
|
Hydraulic test pressure: 100kpa
|
Container material: HDPE
|
|
Airtight test pressure: 20kpa
|
Floor/frame material: DC52D/DC51D
|
|
Full capacity: 1058L
|
Valve material: HDPE/PP
|
|
Applicable environmental temperature:-18——+40℃
|
Sealing material:FPM/EPDM
|
The kangaite IBC cask is produced completely in accordance with standardization, and the framework and pallets are specially designed to be stored safely in a stack of various other types of IBC boxes that are widely used around the world.
Excellent penetration resistance
The kanget IBC barrel can increase very effective protection barriers to prevent penetration.
Modern production equipment and our quality control system guarantee the best performance of permeable barrier. In particular, the tolerance of flammable, toxic, or corrosive chemicals has better performance.
Economy, safety and environmental protection
The treated plastic container has the characteristics of transportation safety, storage economy and solvent resistance. Similarly, very low permeability also plays a positive role in environmental protection.
Our technology can be applied to the following areas:
1. Transport containers
2. Chemical containers
3. Food storage and transportation containers
